AUTOMATED EXTERNAL DEFIBRILLATOR (AED)

AUTOMATED EXTERNAL DEFIBRILLATOR (AED)

OBJECTIVES:-

To provide basic life support level of care for patients in cardiopulmonary arrest.

INDICATION OF PROCEDURE:-
  • Patient in cardiac arrest (breathless and pulseless).
  • Patient must be 8 years of age and older.
  • Patient must weight 40 kg or more.
PROCEDURE
  • Undertake universal precautions (BSI).
  • Maintain ABC
  • Attach Monitor to analyze rhythm obtain BP and Pulse Oxymetre.
  • Establish IV/IO access
  • Verify the absence of pulse and respiration.
  • Initiate CPR with C-A-B sequence 5 cycles or 2 minutes (30compressions: 2 breaths)

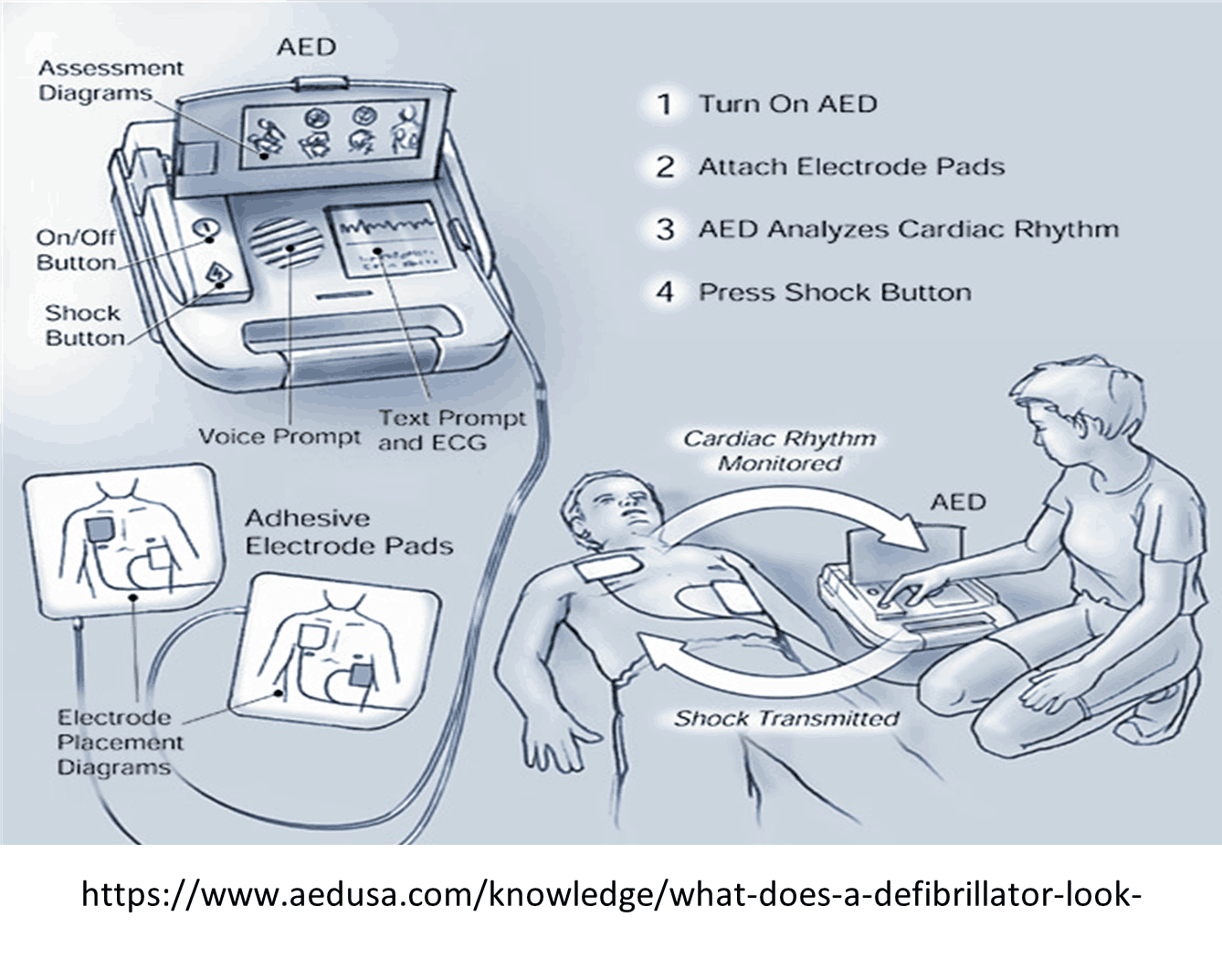

  • Switch the AED ON.
  • Place electrodes on the patient chest.
  • Connect electrodes to the AED cable.
  • Clear the patient to analyze the rhythm.
  • If shock is advised.
    • Insure all individuals are clear of the patient.
    • Deliver shock.
    • Immediate resume CPR for 5 cycle 2 minutes without checking for pulse, BVM ventilation and insert oropharyngeal airway.
    • After 2 minutes AED will prompt to repeat step G and H by initiate rhythm analysis and deliver additional shocks if advised by the AED.
    • If "No shock advised" indicated and the patient remains in cardiac arrest immediately restart CPR beginning with Chest compression.
    • Attach patient to manual defibrillator, analyse rhythm and treat according to protocol.
      • Transport immediately to hospital while continuing CPR.
MEDICAL DIRECTOR:-

Contact medical director as soon as possible.

POST-SHOCK CARE.
  • If pulse is regained after defibrillation ROSC. Post Cardiac Arrest management. Continue ROSC care and ventilatory support and transport to the hospital.
  • If pulse is lost after successful defibrillation
    • Restart CPR.
    • Stop CPR and push analysis, then check if shock is indicated (repeat the above protocol).
PRECAUTIONS
  • Make sure the patient and the environment are dry.
  • Avoid placing pads over cardiac pacemakers/defibrillators or nitroglycerin patches.
  • Do not touch the patient while the AED is assessing the patient or charging.
  • Ensure that no one is touching the patient when the shock button is pushed.
  • Never defibrillate while moving the patient or when in a moving ambulance.
COMPLICATIONS.
  • Burn to skin.
  • Deactivation of patients implanted pacemaker.
  • Injury to patient, self and or bystanders.
